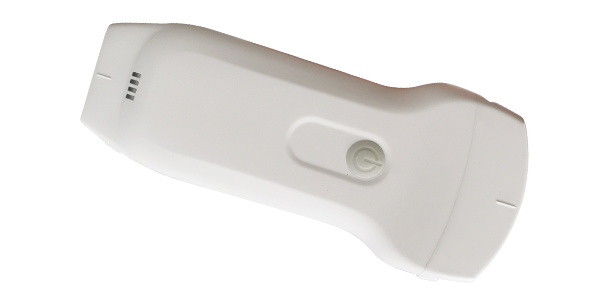

Wireless-Handheld-Ultrasound-Scanner
Model: D2CL
Introduction
The King Of Cost Performance In Handheld Ultrasound Probe
- Highest cost-effective: Students can afford it, just like buying a cell phone.
- One scan whole body: Composed of convex and linear array, it can scan from abdomen to superficial, even heart.
- Small, light, built in battery: You can easily use it anywhere.
- Remote training and guidance: Based on intelligent terminal, remote training and guidance can be achieved.
Specification

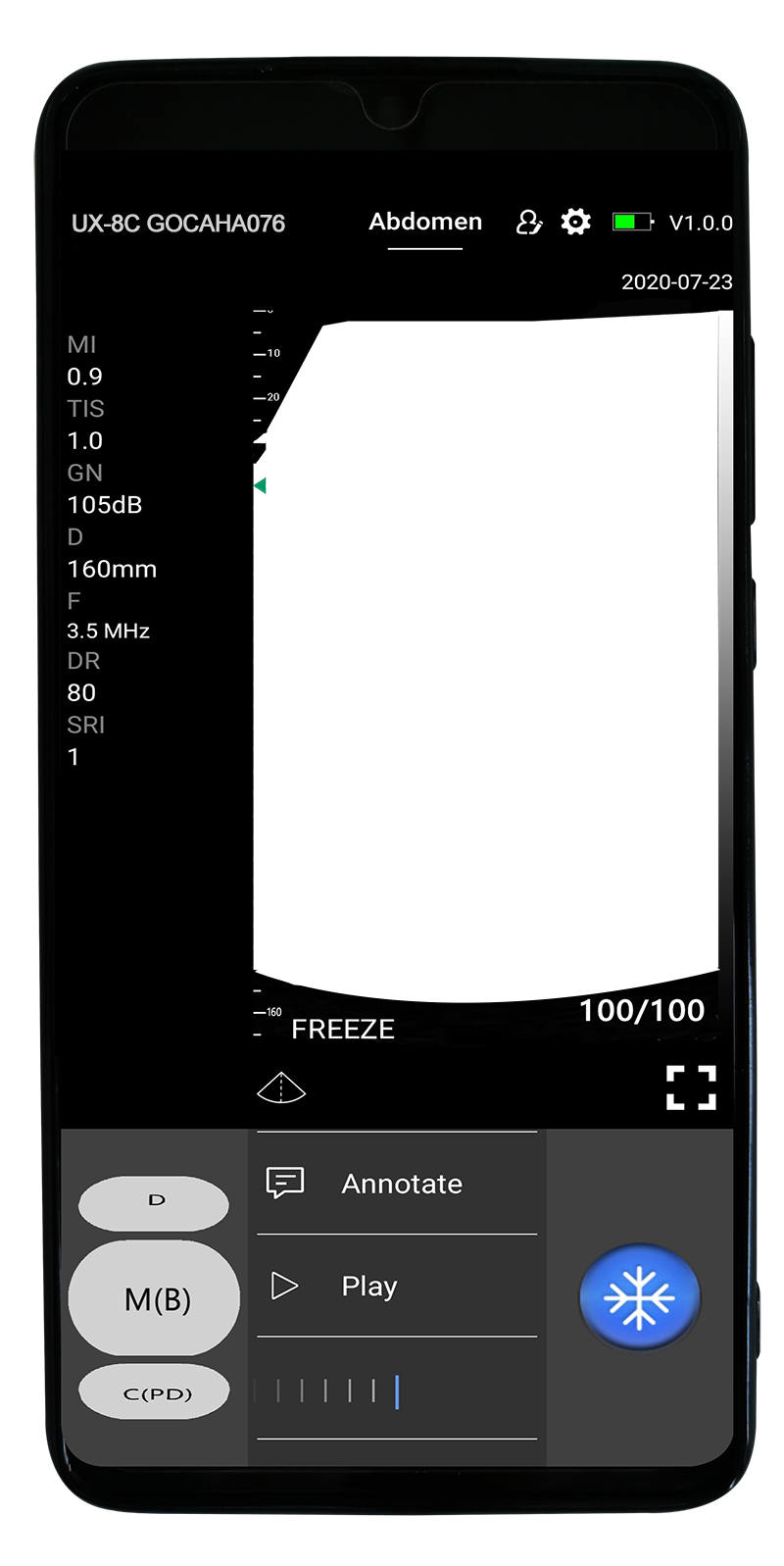

| Display | Phone or tablet screen |
| Probe Type | Convex array + Linear array |
| Scan Angle / Length | Convex 50, Linear 25mm |
| Frequency | Convex probe 3.2/5.0 MHz, Linear probe 7.5/10 MHz |
| Scan Mode | B, B/M, Color, PW |
| Display Depth | Convex 90~305mm, Linear 20~100mm |
| Image Adjust | Gain, Depth, DR, Focus, SRI |
| Measure | Length,Area,Velocity,HR,S/D,GA(CRL,BPD,GS,FL,HC,AC),EFW(BPD,FL),LVIDd,LVIDs,EF,SV,auto vessel measure(TAMEAN,Flow,Diam) |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide line, needle enhance |
| Image Frame Rate | 20 Frames / Second |
| Cinplay | >50s |
| Power | Built-in lithium battery, wireless or USB charge 1.5h, work 1.5h |
| Working System | iOS, Android, Windows |
| WiFi Type | 802.11n / 5G |
| Dimension | 121x53x19mm |
| Weight | 150g |
