Indoor LED Display
Model: S16-Model-3
Introduction

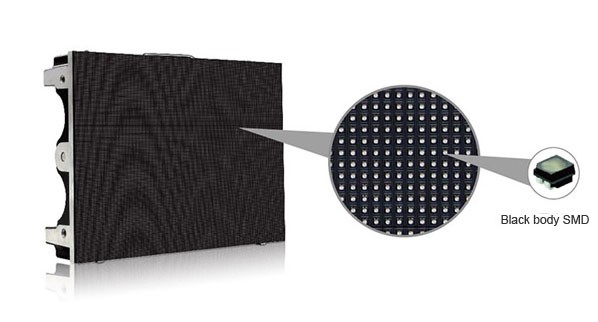

LED Screen Indoor Q Series with the High-precision cast aluminum material, perfect splicing without gaps. Fast locking makes installation and removal extremely easy. The LED cabinet’s rear control system used a snap-in design, maintenance and installation is more efficient and convenient.

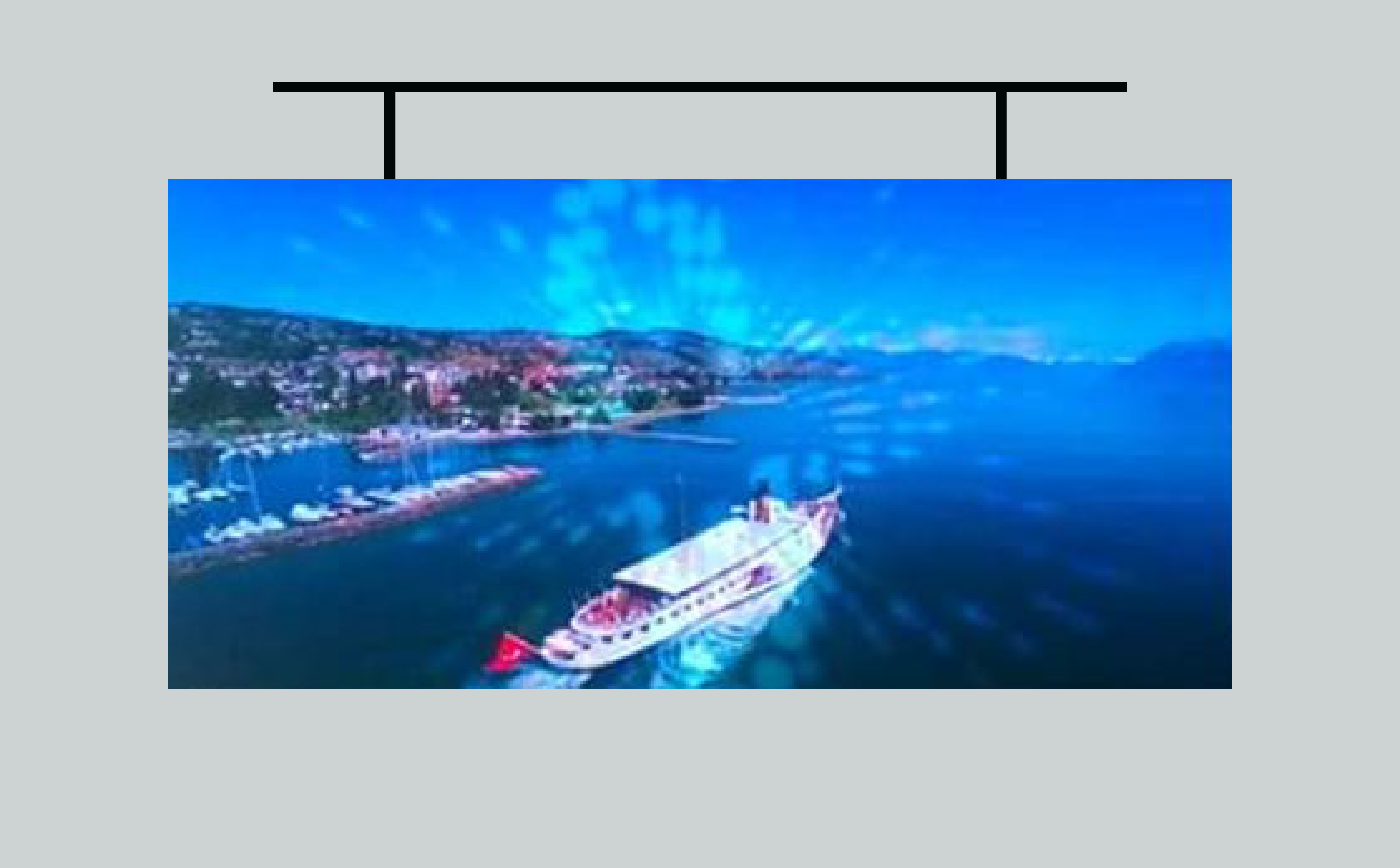

Neotech Solutions Ltd has demonstrated an Indoor LED Display. The application provides the features of updating the content from playback of video content, image, scrolling text messages.
Specification
| Component | Description |
|
Brand |
Neotech |
|
Dot Pitch ( mm） |
2.5mm |
|
Module Size(W×H) |
320mm*160mm |
|
Pixel Configuration |
1R1G1B |
|
Module Resolution(W×H) |
128*64(dot) |
|
Density |
160000dot/m² |
|
LED Type |
SMD2121 |
|
Brightness |
≥1000CD/m² |
|
Cabinet Size（W*H） |
640mm*480mm |
|
Cabinet resolution |
256*192(dot) |
|
Viewing angle |
H:120°/ V:120° |
|
Protective Grade |
IP31 |
|
Average Power consumption |
300Watt/sqm |
|
Max Power consumption |
600 Watt/sqm |
|
Best View distance |
2-50m |
